ATSO v.3.20.2023*

Administrator Guide

March 20, 2023

ATSO - ‘Ability to Survive and Operate’ in a CBRN environment.

Org Admins should set up each section.

Click on the ATSO menu tab to bring up the following sub-menus;

Detection Points

1. Click on the Insert New Detection Point button.

2. Name the Detection Point.

3. Choose the Sensor Type (Vapor - VDP or Liquid - LDP)

4. Choose Incident Type *The Incident Types should be initially set up before using this tool.

5. Choose Zone *The Zones should be initially set up before using this tool.

6. Detailed Information section - Enter known Grid coordinates or click within the mini-map to “plot” the Detection Point.

7. Optional: Fill in a Description.

8. Click Save to finish inserting the Detection Point.

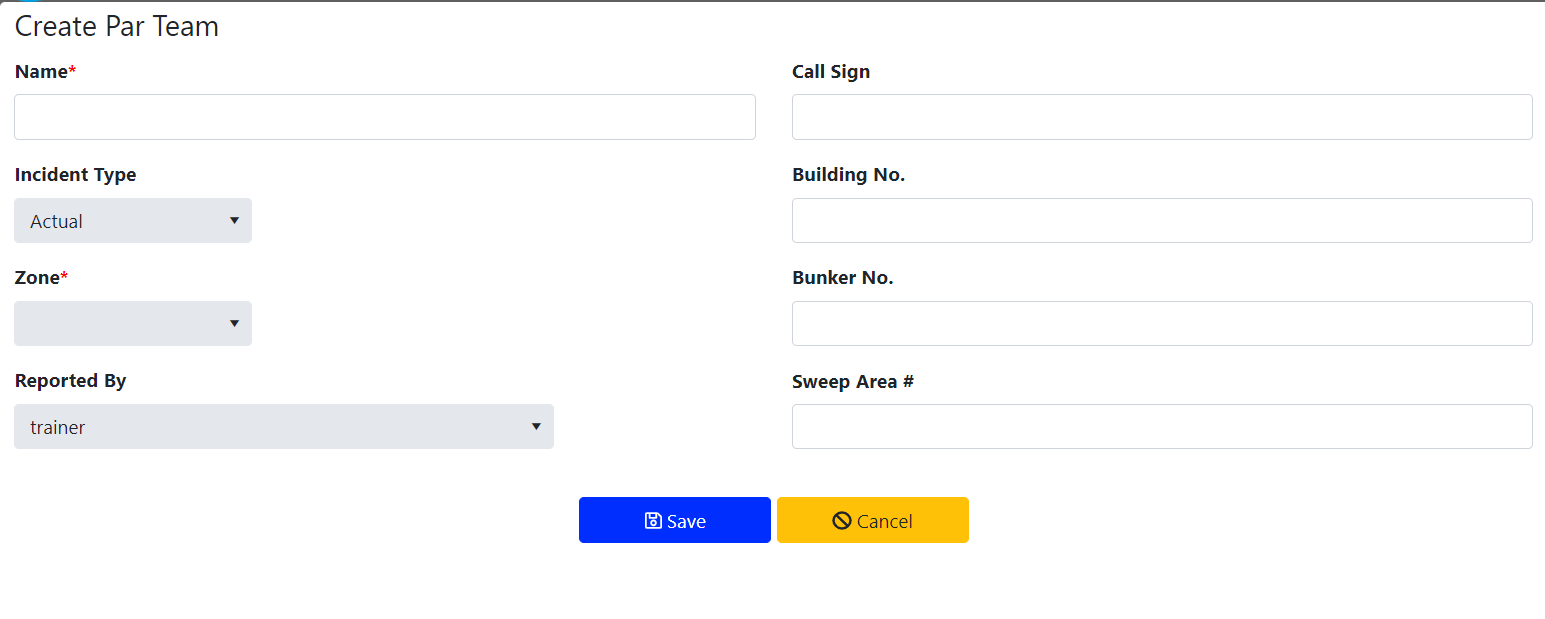

Par Teams

1. Click on the Create a New Par Team button.

2. Add a Par Team Name.

3. Add the Incident type (Initial setup required)

4. Add the Zone the Par Team works (Initial setup required)

5. Optional: Add Description, Call Sign, Building No., Bunker No., and Sweep Area #. 6. Click Save to finish creating the Par Team.

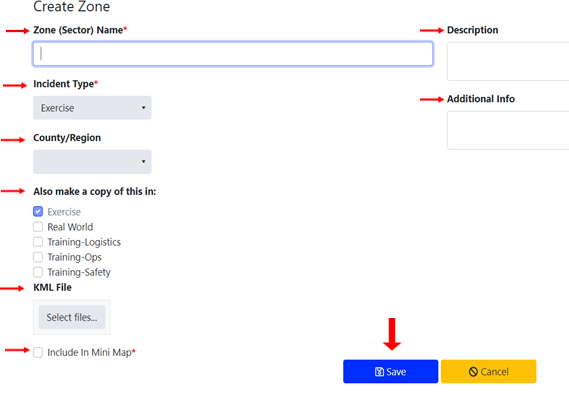

Creating Zones

1. Click on the Create a New Zone button.

2. Type in a Zone Name.

3. Add Incident Type (Initial setup required)

4. Add County/Region (Initial setup required)

5. Optional: Copy the Zones over to other incident Types.

6. Checkmark the Include in Mini Map checkbox.

7. Optional: Add Description and Additional Info.

8. Click Save to finish adding the Zone.
